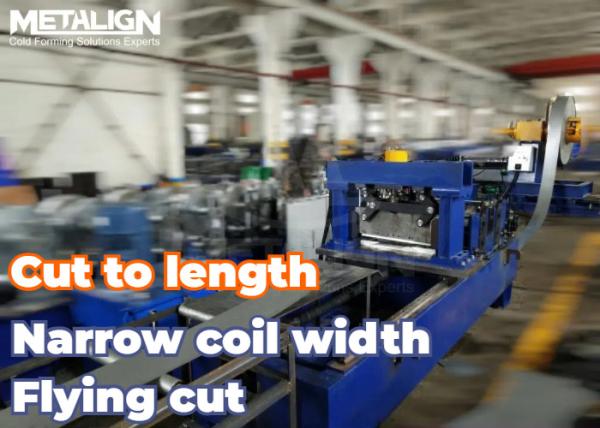

Narrow Coil Flying Cutting To Length Machine

These introductions refer only to the production line and configuration shown in the main image. Each machine is custom-built. Metalign welcomes your inquiry and provides the right production line—forming metal into profiles aligned to your needs.

1. Production Line Overview

• The coil is first unwound, passing through guide rollers and motorized rollers. It is then leveled to ensure uniformity, followed by precision cutting using a hydraulic tracking shear. Finally, the steel sheets are discharged onto the table, completing the process efficiently with minimal downtime.

2. Profile Description

• 3T Hydraulic Uncoiler → Guide Rollers → Motorized Rollers → Leveling Machine → Hydraulic Flying Cut → Out Table
• The coil is first unwound, passing through guide rollers and motorized rollers. It is then leveled to ensure uniformity, followed by precision cutting using a hydraulic tracking shear. Finally, the steel sheets are discharged onto the table, completing the process efficiently with minimal downtime.

3. Key Focus

• Hydraulic System for High-Precision Cutting: The tracking hydraulic shear system precisely controls cutting lengths according to production requirements and adapts to various steel thicknesses, offering high-precision length cutting.
• Flexibility and Adaptability: The combination of guide rollers and motorized rollers accommodates various steel coil specifications, ensuring smooth material flow during leveling and cutting. The hand crank design allows operators to quickly adjust for different steel sizes, making it ideal for multi-specification, small-batch, or customized production lines.
• Efficient Leveling and Handling Capability: The main leveling machine, in coordination with the motorized rollers, ensures the flatness of steel plates, reducing subsequent processing errors and improving production quality. It also enhances the ability to handle thicker steel materials.
• Simplified Operation and Cost Reduction: Compared to equipment requiring frequent manual adjustments, the combination of the hand crank and hydraulic system provides higher automation and accuracy, reducing operational complexity, increasing production efficiency, and lowering long-term labor costs.
• Ideal for Medium Load and Small-Batch Production: This line is suitable for handling 3T steel coils with excellent flexibility, allowing seamless switching between various steel specifications. It is particularly well-suited for medium-to-small batch or customized production.

4. Production Line Components

5. Customization Options

• This line is highly customizable for specific applications, particularly in cutting narrow steel coils with thicknesses ranging from 0.3mm to 1.5mm. Customers can choose to laminate a transparent protective film on the steel surface to ensure protection during handling and processing. It is designed to meet various industry-specific requirements and enhance production efficiency.
