Adjustable Width Slot Type Cable Tray Roll Forming Machine For Pre Punched Steel Profiles

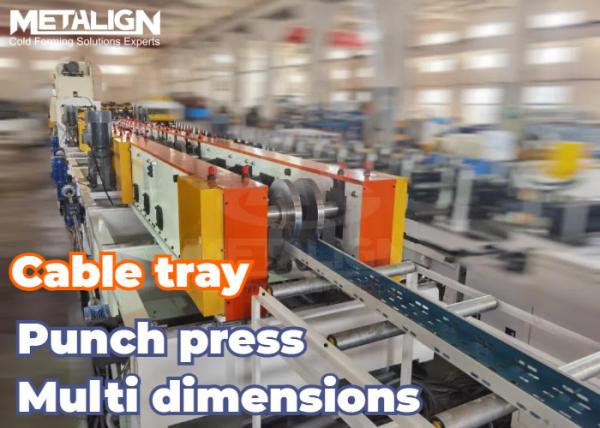

These introductions refer only to the production line and configuration shown in the main image. Each machine is custom-built. Metalign welcomes your inquiry and provides the right production line—forming metal into profiles aligned to your needs.

1. Production Line Overview

• This production line targets manufacturers in electrical infrastructure and construction industries, offering adjustable-width cable trays with efficient punching, cutting, and forming processes. It ensures high flexibility, fast changeovers, and continuous production stability.

2. Profile Description

• The profile is a perforated or non-perforated channel cable tray made from galvanized steel, thickness 1.2–2.0mm. Designed for supporting electrical cables, it features adjustable width and height. Widely used in construction, industrial, and energy sectors.

3. Production Process

• Decoiler + Leveler → Limiter → Servo Feeder → Punching Machine → Hydraulic Cutter → Conveyor Platform → Pressure Rollers → Guide → Roll Former → Out Table
• Steel coils are leveled, punched, and cut into sheets before roll forming. The conveyor ensures continuous feeding while the roll former shapes trays with adjustable dimensions.

4. Technical Parameters

5. Key Focus

• Servo feeding and punching ensure precise hole positioning.
• Buffer conveyor prevents downtime between cutting and forming.
• Adjustable roll former for flexible cable tray widths and heights.
• Heavy-duty structure guarantees stable and long-term operation.
• Pre-cutting design improves edge quality and forming stability.

6. Production Line Components

7. Customization Options

• We can customize the decoiler capacity, punching patterns, tray widths and heights, roll forming stations, and automatic width adjustment system according to specific cable tray dimensions, thickness ranges, and perforation layouts required by different markets.
